Staircases (Arial View)
The staircase designs below, fall into our standard types of staircases. These are arial views looking down. These designs can be modified according to your requirements. Alternatively, you may require a completely bespoke design. Contact us to see how we can help you
Side view staircases can be seen here
Staircases: Standard, Arial View:
Typical single winder, consists of one box of three winders
Continuous double winder, consists of two boxes of four winders
Staircase with quarter landing option
Typical double winder, consists of two boxes of four winders

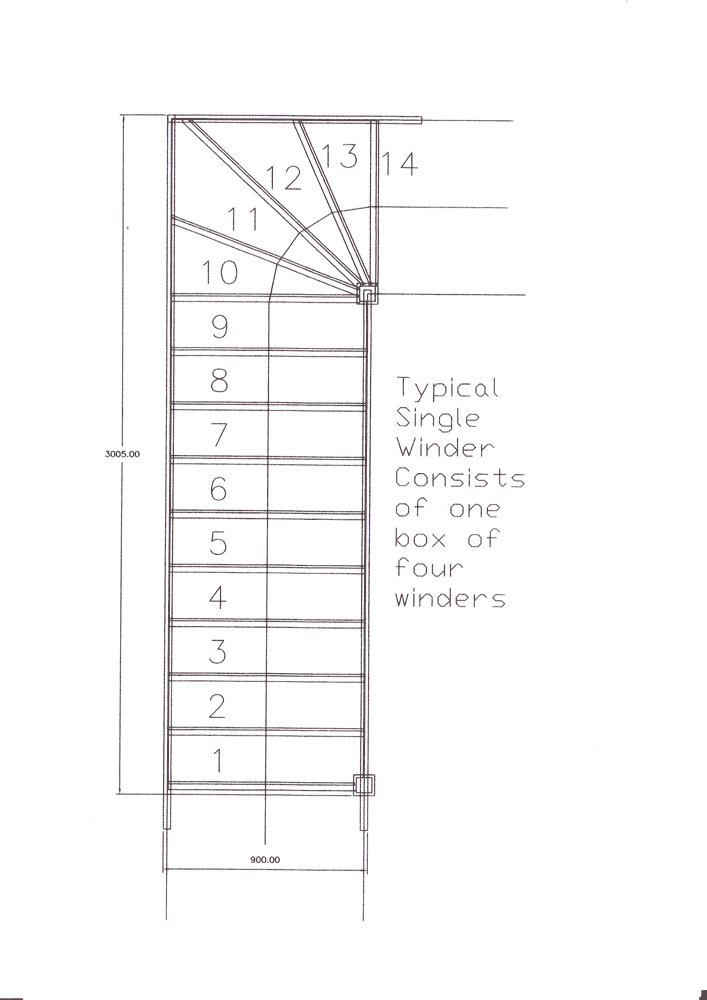

Typical single winder, consists of one box of four winders
Continuous double winder, consists of two boxes of three winders
Staircase with half landing option
Typical double winder, consists of two boxes of three winders
Straight tread, 13 flats, 14 risers
All cases can have additional posts and bullnose first tread

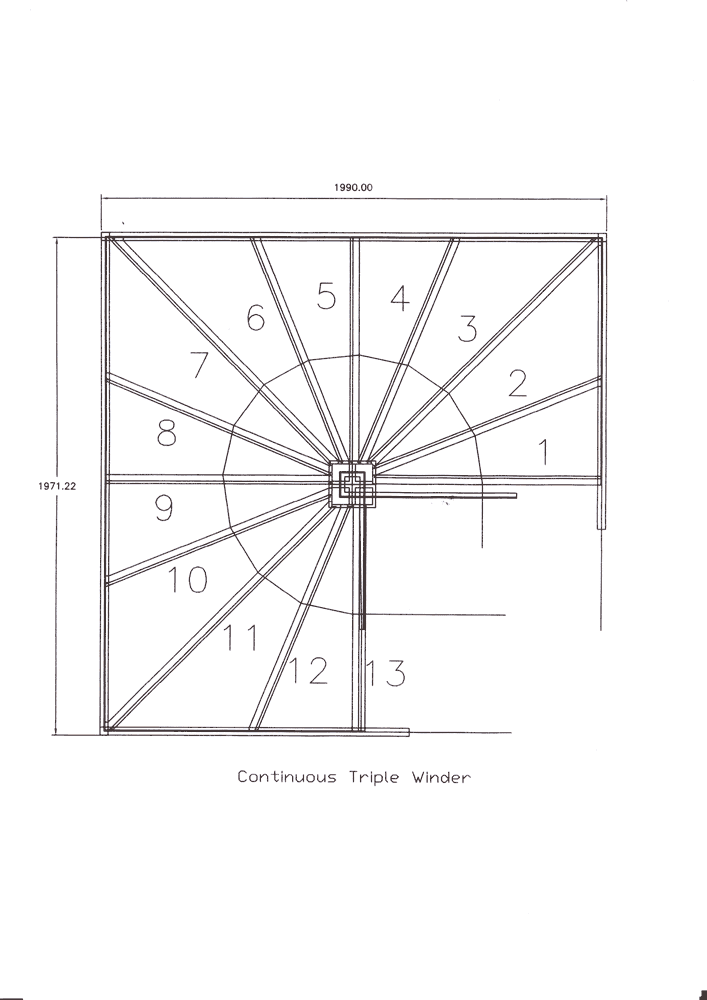

Continuous triple winder
Triple winder with four posts
